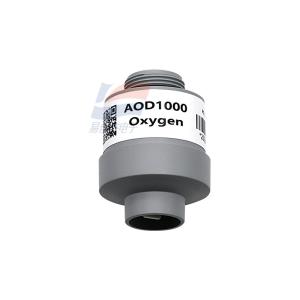

AOD1000 High Pressure Submersible Oxygen Sensor High-pressure Oxygen Chamber Oxygen Concentration Sensor For Oxygen Monitoring

Model Number : AOD1000

Place of Origin : CN

MOQ : 1PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000PCS

Delivery Time : 5-8 work days

Packaging Details : Standard packaging

Measurement Range : 0 ~ 100%

Output Voltage : 8.5 ~ 14 mV (in air)

Response Time : < 10 s

Temperature Compensation Range : 0 ~ 50℃

Load Resistance : 10 kΩ

Operating Temperature Range : 0 ~ 45℃

Contact Now

AOD1000 High Pressure Submersible Oxygen Sensor High-pressure Oxygen Chamber Oxygen Concentration Sensor For Oxygen Monitoring

Product Introduction:

The AOD1000 is a high - pressure - resistant oxygen sensor, which can be used in high - pressure environments. Its interface model is a Molex 3 - pin connector. Different from the oxygen sensors for normal - pressure detection, its structure and composition enable it to withstand much higher pressure than ordinary oxygen sensors.

Working Principle:

It measures the oxygen concentration based on the voltage - divider electrochemical principle, and can achieve full - scale linear output.

Application Fields:

It does not require an external power supply during operation. After professional and accurate product calibration and temperature compensation at the factory, it is widely used in oxygen monitoring of high - pressure equipment, such as hyperbaric oxygen chambers, inspection ships, tankers, and other equipment.

Parameter

Value

Unit
Measuring Range 0 - 100 %
Output Voltage (in Air) 8.5 - 14 mV
Response Time (T90) < 10 s
Linearity Full - scale linear -
Temperature Compensation < 2% O₂ equivalent (0 - 50℃) -
Load Resistance ≥ 10 kΩ
Interface Molex 3 - pin connector (2.54mm) -
Housing Material Gray ABS -
Weight Approximately 25 g
Operating Temperature Range 0 - 45 ℃
Operating Pressure Range 0.8 - 7.0 bar
Operating Humidity Range 0 - 99 (non - condensing) %RH
Recommended Storage Temperature 0 - 25 ℃
Expected Lifetime 42 months
Storage Lifetime 6 months
Shelf Life 12 months

AOD1000 High Pressure Submersible Oxygen Sensor High-pressure Oxygen Chamber Oxygen Concentration Sensor For Oxygen Monitoring
